Item # DAM-6-4N-S, DAM-N Male Adapter Tube Fittings

$10.96

REQUEST A QUOTE

Specifications

Z Series Ferrule

Material

Moly Coating

No

Stainless Steel 316/316L

None

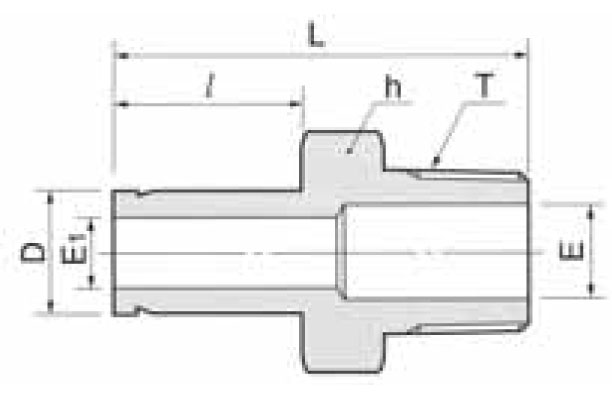

Dimensions

Thread Type

T-Thread Size

E-Min.

E1-Min.

h-Width Across Flat

I

L

NPT

1/4

7.1  mm

7.1 mm

9/16 in (14.3 mm)

17.5 mm

38.9. mm

Installation Instructions

  1. Insert the tube stub end into the Dk-Lok port
    • Make sure that the tube stub end bottoms on the fitting body shoulder.
  2. Spanner-tighten the nut 1 1/4 turns beyond the finger-tight position.
    • Tighten the nut 3/4 turn for 1/8, and 3/16; 3, and 4mm tube fittings.
  3. Note: For re-use, see re-assembly instruction.
