Z Series Ferrule
Material
Moly Coating
No
Stainless Steel 316/316L
None

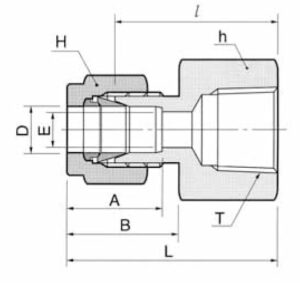

D-Tube O.D.
Thread Type
T-Thread Size
E-min.
h-Width Across Flat
H-Width Across Flat
A
B
I
L
1/2 in (12.7 mm)
1/2
10.4 mm
1-1/16 in (27.0 mm)
7/8 in (22.2 mm)
22.9 mm
21.8 mm
36.6 mm
46.7 mm
