Z Series Ferrule
Material
Moly Coating
No
Stainless Steel 316/316L
None

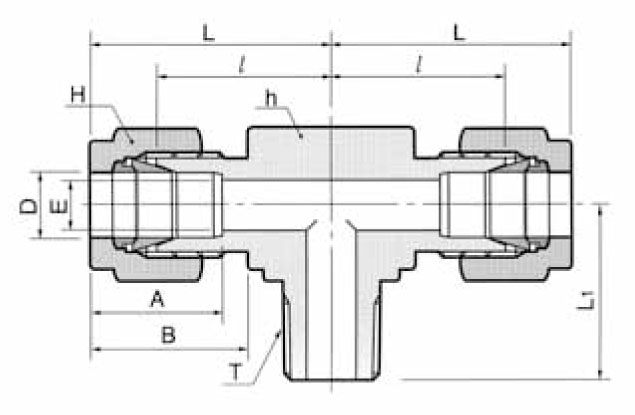

D-Tube O.D.
Thread Type
T-Thread Size
E-min
h-Width Across Flat
H-Width Across Flat
A
B
I
L
L1
1/2 in 12.7 mm
NPT
1/2
10.4 mm
13/16 in 20.6 mm
7/8 in 22.2 mm
22.9 mm
21.8 mm
25.9 mm
36.1 mm
33.0 mm
