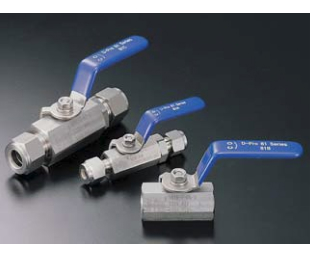

Item # V81 B-D-6T-S, V81 Series Ball Valves

$53.08



REQUEST A QUOTE

Technical Specifications

Series

Orifice

End Connection

Size Inlet x Outlet

Body Material

O-Ring

Seat Material

Working Pressure

Handle



Series

7.50 mm Orifice

Dk-Lok

3/8″ Dk-Lok x 3/8″ Dk-Lok

S316

FKM

PTFE

1000 psig (68.9 bar)

Lever Handle

Dimensions

Cv

L

H

Hex

A

A1

H1

7.5

2.5 91.3 mm

36.5 mm

20.6 mm

81.0 mm

42.0 mm

30.0 mm

Features

Applications

  • Compact barstock construction for high integrity
  • Blow-out proof design with internally loaded stem
  • Floating Ball design providing seat wear compensation
  • Micro-finished ball ensures a leak-tight shut-off on pressure
  • Standard lever handle, optional butterfly handle

V81 series ball valve offers a safe and reliable performance for a wide range of onshore and offshore application: water, oil, gas, petrochemical and general duty applications.
