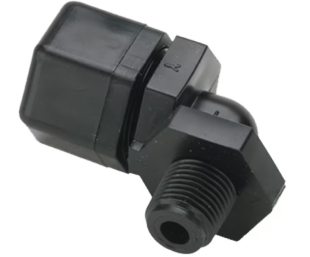

Parker Compression Style Plastic Fittings, Fast-Tite | #P6ME6

$5.90

Parker’s Fast & Tite fittings are a compression style fitting that installs in seconds without tools and provides a tight, sure,leak proof seal without clamps or adjustments. A unique grab ring for tube retention, coupled with a Nitrile o-ring creates apositive seal and assures good tube retention with only hand tight assembly.
Use with soft metal, glass tubing and the following Parker Parflex Division tubing.

• Polyethylene
• Nylon
• Polypropylene



Technical Specifications

Shape

Body Material

Compression 1 Style

Connection 1 Tube O.D. (inch)

Connection 2 Tube O.D. (inch)

Connection 2 Style

Connection 2 Thread Size (inch)

Style

Minimum Operation Temperature

Maximum Operating Temperature

Tube Material

Media

Application

Gripping Ring Material

O-Ring Material

Specifications Met

90° Elbow

Black Polypropylene

Compression

3/8″

N/A

NPTF

3/8″

Tube to Pipe

0 °F, -18 °C

212 °F, 100 °C

Thermoplastic, Glass, Soft Metal

Water, Air, Other Compatible Fluids

Filtration, Purification, Dispensing

302 Stainless Steel

Nitrile

FDA, NSF-51
